Wire A Double Switch For Bathroom Fan - How To Install A Bathroom Exhaust Fan : I replaced a bathroom light/exhaust double light switch.. As long as the switch and wiring are rated for the amount of current, which unless you get a huge fan, it should be. Wiring a separate light switch for a bathroom combo light and exhaust fan ad#blockelectrical question: It appears to me that these are all powered from one source coming from the panel, with 12/2 wires connecting them. May need additional cable make the connections at the fan unit using wire nuts. I have a vanity light on a single switch, a vent fan and ceiling light combo on a double switch and a gfci outlet that are wired together in that order.
You will have a black, red, and white wire, plus the ground. Since i don't have room for a 2 gang box in my location, i would like to install a double rocker in that one gang box. Since the switch was already removed i am not sure how it was wired. Turn the breaker on and test the double switch, noting which switch now controls which fixture. Similarly, you need to take the light's hot wire for switch's red wire.

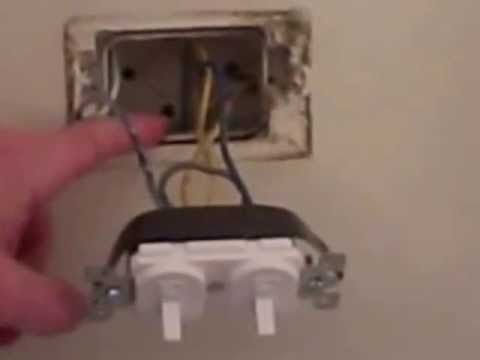

How To Wire A Double Switch Wiring A Switch Conduit Youtube from i.ytimg.com The vent fan may be powered by this circuit. Single wall switch wiring | dual wall switch wiring note: Rewiring your bathroom circuit to allow fan and light to be operated independently. Your single wall switch has now been converted to a double wall switch, so you can control lights independently or turn on a light without turning on a fan and vice versa. Wire a double switch for bathroom fan / for example, you might want to turn on a bathroom light. You just need to connect the fan to the light switch so that the fan comes on when you switch the light on. After my bathroom addition was rough wired and before the insulation was done i decided to add a ceiling fan and light to be controlled with separate switches in place of a simple light fixture. Wire your fan in this article:
A separate circuit is required for a whirlpool tub or any other large fixture or appliance in the bathroom.
For a typical installation it is best to install a switch box that will enclose the original light switch and the added circuit and switch for the bathroom fan unit. If you have the ability to install a new cable (or pull an extra wire, if the wires happen to be in conduit), you could use a device that has two switches that fit in a single gang box. Rewiring your bathroom circuit to allow fan and light to be operated independently. *** refer to more video separate switches for bath. Since i don't have room for a 2 gang box in my location, i would like to install a double rocker in that one gang box. Connect each of the wires from the bundle (excluding the one to the switch), to separate load terminals on the new switch. More about wiring a bathroom exhaust fan. Wiring a separate light switch for a bathroom combo light and exhaust fan ad#blockelectrical question: My bathroom has one switch that powers the fan and light. Light fixtures and wall switches must be on a separate circuit. A bathroom extractor fan is essential to clear the room of humidity and prevent damp. Double switch test and replacement for bath fan and light in a 1960 house. All grounds are bound with wire nut and grounded to switch box by pigtail.
I show you how to wire a switch in a bathroom for a light/fan combo and vanity light using a single feed. Connect each of the wires from the bundle (excluding the one to the switch), to separate load terminals on the new switch. Connect the wire that's on the switch (not the one leading to the bundle), to the common terminal of the new double switch. Light fixtures and wall switches must be on a separate circuit. *** refer to more video separate switches for bath fan and light from single switch by sparky channel at this:
How To Wire Switches from waterheatertimer.org Dakota, a contractor from little rock, arkansas. After my bathroom addition was rough wired and before the insulation was done i decided to add a ceiling fan and light to be controlled with separate switches in place of a simple light fixture. Sometimes a unit may have different colors used for wires. *** refer to more video separate switches for bath fan and light from single switch by sparky channel at this: Connect the wire that's on the switch (not the one leading to the bundle), to the common terminal of the new double switch. In the bathroom i am remodeling there is a fan in the ceiling and a light above the sink. Wire a double switch for bathroom fan / for example, you might want to turn on a bathroom light. How to put bath fan and light on separate sw.
It appears to me that these are all powered from one source coming from the panel, with 12/2 wires connecting them.
Installing and wiring a bath exhaust fan and light ad#blockelectrical question: Set the new switch back into the box. After my bathroom addition was rough wired and before the insulation was done i decided to add a ceiling fan and light to be controlled with separate switches in place of a simple light fixture. Wiring a separate light switch for a bathroom combo light and exhaust fan ad#blockelectrical question: More about wiring a bathroom exhaust fan. Sometimes a unit may have different colors used for wires. *** refer to more video separate switches for bath fan and light from single switch by sparky channel at this: Wiring a combination bathroom ceiling exhaust fan and light unit with the fan and light being controlled by separate wall switches is an. But the majority of fans are wired to work only alongside the bathroom light, which can be really wasteful. My bathroom has one switch that powers the fan and light. Double switch test and replacement for bath fan and light in a 1960 house. Wire a double switch for bathroom fan / installing a bathroom fan timer building moxie. Similarly, you need to take the light's hot wire for switch's red wire.
But when the fan includes also a light. In the bathroom i am remodeling there is a fan in the ceiling and a light above the sink. After my bathroom addition was rough wired and before the insulation was done i decided to add a ceiling fan and light to be controlled with separate switches in place of a simple light fixture. The black wire should feed your light, and be wired to one swtich. How to wire a bath ceiling fan light combo with 2 switches.
Adding Bathroom Fan Switch from mrelectrician.tv Learn how to install a double switch or combination two switches. The red wire should run to your fan, which will be on the second switch. Rewiring your bathroom circuit to allow fan and light to be operated independently. All terminals are live, but the top switch wont work. This is how to wire this particular switch to operate the bathroom exhaust fan and light. The power source for the exhaust fan will require both the hot and neutral wires of the circuit up at the unit and it would be best to have the neutral wire at the switch box as well, especially if the a humidity control switch or occupancy sensor will be installed which requires the neutral wire. A double pole switch opens and closes both live and neutral simultaneously so the circuit is completely isolated. In order to save space, i opted for 2 double switches.
The wiring instructions for your new hunter fan differ slightly based on the type of wall switch and your fan's control system (pull chain, remote control, etc.).
Wiring a bathroom fan light heater combo i guess what i am doing must be unique, because i can't find information anywhere. A bathroom extractor fan is essential to clear the room of humidity and prevent damp. Light fixtures and wall switches must be on a separate circuit. By convention only single pole devices are allowed to switch the live, never the neutral. Learn how to install a double switch or combination two switches. Removing existing wiring i removed the 2 wire with ground from the switch to fixture and replaced it with a 3 wire with. Install the switch and coverplate, and enjoy. Double switch test and replacement for bath fan and light in a 1960 house. Wiring a separate light switch for a bathroom combo light and exhaust fan ad#blockelectrical question: How to wire a bath ceiling fan light combo with 2 switches. Your single wall switch has now been converted to a double wall switch, so you can control lights independently or turn on a light without turning on a fan and vice versa. All grounds are bound with wire nut and grounded to switch box by pigtail. This is how to wire this particular switch to operate the bathroom exhaust fan and light.
